Project LK&1928
4.200,00 €
Description
| General parameters | |
|---|---|
| Usable area | 278,59 m² |
| Total surface | 545,53 m² |
| Building area | 256,20 m² |
| Building height | 10,25 m |
| Roof angle | 30° |
| Ceiling height | 2,70 - 2,95 m |
| Minimum plot size | 36,80 × 44,00 m |
| Construction details | |
|---|---|
| Exterior walls | Porotherm Dryfix ceramic blocks, 30 cm thick, manufactured by Wienerberger, Termonium polystyrene foam / Isover mineral wool |
| Interior walls | Porotherm Dryfix ceramic blocks, 25 cm and 11.5 cm thick, manufactured by Wienerberger |
| Ceiling | Reinforced concrete, monolithic |
| Roof construction | Reinforced concrete flat roof |
| Facade | Silicone plaster, white; facade cladding made of composite wood panels; facade panels made of quartz sintered stone imitating travertine |
| Windows and doors | Aluminum, wood-like color |
Internal Plan

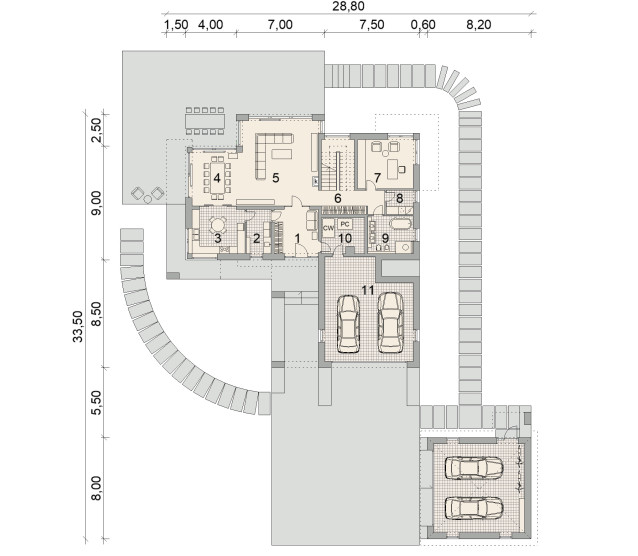

| Ground floor | |
|---|---|
| Usable area | 142,58 + 51,59 m² |
| Ground floor rooms | |
|---|---|
| 1. Lobby | 12,25 m² |
| 2. Pantry | 6,83 m² |
| 3. Kitchen | 14,65 m² |
| 4. Canteen | 17,00 m² |
| 5. Living room | 40,50 m² |
| 6. Corridor | 9,78 m² |
| 7. Office | 4,05 m² |
| 8. Laundry room | 10,74 m² |
| 9. Bathroom | 9,69 m² |
| 10. Boiler room | 51,59 m² |
| 11. Garage | 51,59 m² |

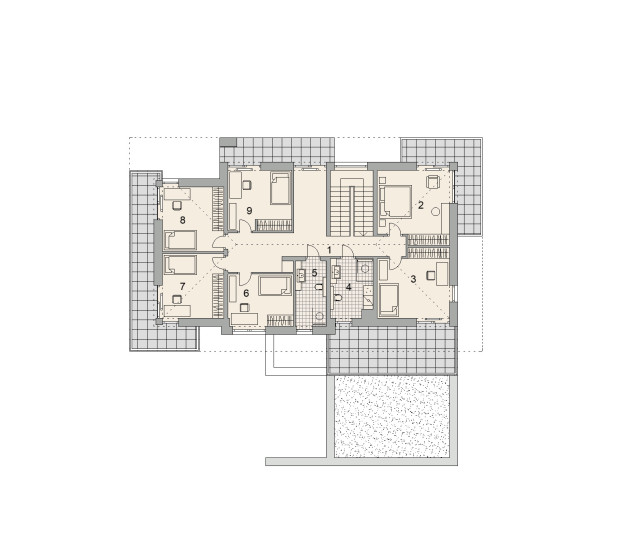

| Floor | |
|---|---|
| Usable area | 136,01 m² |
| Floor rooms | |
|---|---|
| 1. Corridor | 25,97 m² |
| 2. Bedroom | 18,83 m² |
| 3. Room | 17,72 m² |
| 4. Bathroom | 9,45 m² |
| 5. Bathroom 2 | 7,60 m² |
| 6. Room 2 | 12,64 m² |
| 7. Room 3 | 14,78 m² |
| 8. Room 4 | 14,78 m² |
| 9. Room 5 | 14,24 m² |
